In the world of modern manufacturing, precision is no longer an option; it’s a necessity. Industries today demand accuracy, efficiency, and reliability in every component they produce, from automotive parts to intricate molds used in aerospace and electronics. Among the technologies that have transformed the manufacturing landscape, CNC Wire Cut EDM (Electrical Discharge Machining) machines stand out as a game-changer. These machines not only provide unmatched precision but also allow manufacturers to handle complex geometries and materials that are challenging for traditional cutting methods.

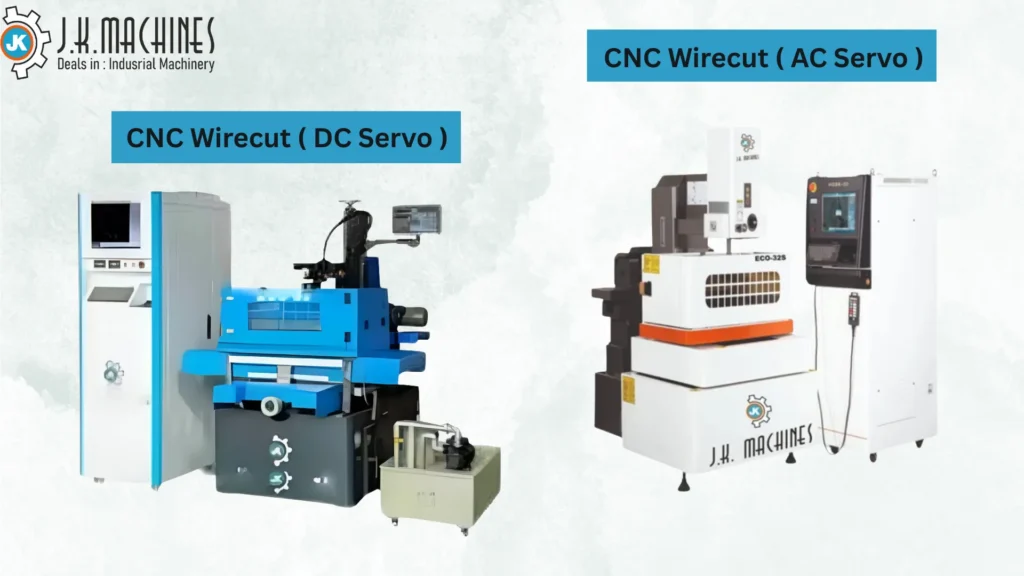

At JK Machines, we offer advanced CNC Wire Cut EDM solutions that redefine precision and productivity. Our portfolio includes two cutting-edge variants: CNC Wirecut (AC Servo) and CNC Wirecut (DC Servo), each engineered to meet different industrial requirements while maintaining high standards of accuracy and efficiency.
What is CNC Wire Cut EDM?
CNC Wire Cut EDM is a non-traditional machining process that uses a thin electrically charged wire to cut through conductive metals with high precision. Unlike conventional cutting methods, it does not rely on physical force, thereby eliminating mechanical stresses and ensuring intricate details are accurately machined. This technology is essential for industries that require tight tolerances, complex shapes, and high-quality surface finishes.
Key advantages of CNC Wire Cut EDM include:
- High precision with tolerances as tight as ±0.001 mm
- Ability to cut complex profiles and fine details
- Minimal material wastage
- Superior surface finish
- Compatibility with hard and exotic metals
By adopting CNC Wire Cut EDM machines, manufacturers can significantly improve production efficiency while maintaining the highest quality standards.
Understanding CNC Wirecut (AC Servo)
The CNC Wirecut (AC Servo) machine uses an alternating current servo system for wire movement and control. This technology provides exceptionally smooth and accurate motion, making it ideal for tasks requiring high-speed cutting and complex contours.
Features of CNC Wirecut (AC Servo):
- High-speed cutting – AC Servo allows faster wire movement without compromising precision.
- Stable performance – The servo system ensures consistent cutting quality across long production runs.
- Energy efficiency – Optimized AC servo motors consume less power, reducing operational costs.
- Advanced control software – Supports multi-axis cutting for intricate parts.
- Reduced maintenance – Fewer mechanical components mean lower downtime and maintenance costs.
Benefits for Industries:
- Automotive industry: Accurate production of molds, dies, and engine components.
- Aerospace industry: Machining of high-strength alloys for critical aerospace parts.
- Electronics: Precision cutting for conductive components.
- Tool & die making: Efficient production of complex molds with fine details.
The AC Servo system is particularly suited for high-volume production where both speed and precision are essential.
Understanding CNC Wirecut (DC Servo)
On the other hand, the CNC Wirecut (DC Servo) machine utilizes a direct current servo system, offering ultra-fine control of wire positioning. While it may operate at slightly slower speeds compared to AC Servo systems, DC Servo machines excel in exceptional accuracy and detailed surface finish.
Features of CNC Wirecut (DC Servo):
- Ultra-precision cutting – Ideal for applications requiring extremely tight tolerances.
- Superior surface quality – Achieves smoother finishes, reducing post-processing efforts.
- Reliable wire control – DC servo provides consistent wire tension and movement.
- Versatility – Can handle a wide range of conductive materials, including hardened steels.
- Ease of operation – User-friendly interface and programmable settings for customized machining.
Benefits for Industries:
- Mold and die manufacturing: Perfect for intricate designs and detailed molds.
- Medical equipment: Precision machining of surgical tools and implants.
- Jewelry and fine components: Cutting delicate parts without deforming the material.
- Prototype development: Ideal for producing high-quality prototypes with minimal errors.
DC Servo machines are often chosen for precision-critical applications, where quality and accuracy take precedence over speed.
How CNC Wire Cut EDM Machines Work
The Wire Cut EDM process operates by generating a series of electrical sparks between a thin wire and the workpiece. Each spark erodes a tiny portion of the material, allowing the machine to cut complex shapes with high precision. The wire is continuously fed from a spool, ensuring consistent operation and accuracy.
Key steps in the Wire Cut EDM process:
- Programming the design – Using CAD/CAM software, the part design is converted into a machine-readable format.
- Setting up the machine – Workpiece and wire alignment, along with process parameters, are configured.
- Spark erosion cutting – Electrical discharges remove material gradually, maintaining a precise cut.
- Wire tensioning and flushing – The system ensures stable wire movement and removes debris using dielectric fluid.
- Final finishing – The machined part is cleaned and inspected for tolerance and surface quality.
Both AC Servo and DC Servo machines follow this process, with differences in wire control, speed, and precision tailored to specific industrial needs.
Applications Across Industries
CNC Wire Cut EDM machines are widely used in sectors where precision and accuracy are critical. Some notable applications include:
Automotive Industry
- Production of engine components, molds, and dies
- High-precision gear cutting and shaping
Aerospace Industry
- Machining high-strength alloys
- Manufacturing turbine blades and structural components
Electronics Industry
- Cutting conductive parts for circuit boards and connectors
- Production of micro-components for precision electronics
Tool & Die Industry
- Fabrication of complex molds and dies for injection molding and stamping
- Achieving detailed profiles and intricate designs
Medical & Jewelry
- Surgical instruments, implants, and fine jewelry components
- Maintaining high accuracy and surface finish without material deformation
Comparison with Traditional Cutting Methods
Why choose CNC Wire Cut EDM over conventional cutting techniques?
| Feature | Traditional Cutting | CNC Wire Cut EDM |
|---|---|---|
| Precision | Limited to ±0.05 mm | Up to ±0.001 mm |
| Material Hardness | Hard materials are challenging | Can cut hardened steels & exotic alloys |
| Complex Shapes | Limited to simple geometries | Handles intricate designs effortlessly |
| Surface Finish | May require additional finishing | Smooth finishes, minimal post-processing |
| Heat Generation | High, may affect material | Localized sparks, minimal heat impact |
Clearly, CNC Wire Cut EDM machines provide superior performance in precision, flexibility, and quality.
Choosing Between AC Servo and DC Servo Machines
Selecting the right CNC Wire Cut EDM machine depends on your production needs, material type, and precision requirements.
- AC Servo Machines: Best for high-speed, high-volume production where speed and consistent quality are critical.
- DC Servo Machines: Best for precision-critical applications requiring ultra-fine accuracy and superior surface finish.
Other considerations include:
- Workpiece size and material
- Required tolerances and surface quality
- Budget and energy efficiency
- After-sales service and maintenance support
By understanding your requirements, you can make an informed choice between AC Servo and DC Servo machines.
Future Trends in EDM Technology
The CNC Wire Cut EDM industry is evolving rapidly. Some emerging trends include:
- Automation and AI integration – Reducing human intervention and increasing efficiency
- Hybrid machining solutions – Combining EDM with other technologies for faster production
- Improved energy efficiency – Reducing operational costs and environmental impact
- Advanced control systems – Enhancing precision and reducing errors
JK Machines is at the forefront of adopting these innovations, ensuring clients receive cutting-edge EDM solutions for today and the future.
Conclusion –
Precision, efficiency, and versatility are the hallmarks of modern manufacturing, and CNC Wire Cut EDM machines deliver all three with unmatched performance. Whether you choose CNC Wirecut (AC Servo) for high-speed production or CNC Wirecut (DC Servo) for ultra-precision applications, JK Machines offers advanced EDM solutions that redefine industry standards.
Investing in the right CNC Wire Cut EDM machine is not just a purchase; it’s a strategic decision that enhances productivity, reduces costs, and ensures the highest quality output. With JK Machines, manufacturers gain a trusted partner in precision engineering, committed to excellence, innovation, and customer success.
