Silent Features

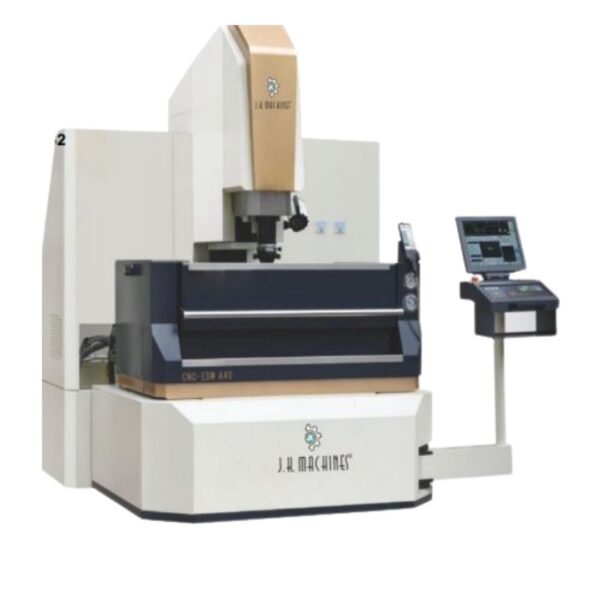

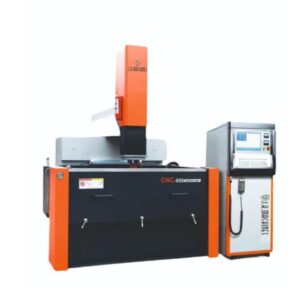

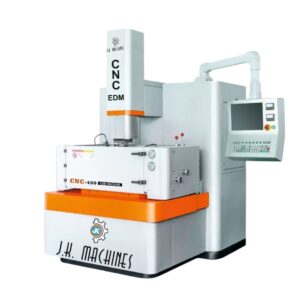

The CNC EDM (NEXT GEN V1.1) from J.K. Machines represents the next level of precision engineering and smart automation in Electric Discharge Machining. Built with cutting-edge technology and a Windows-based three-axis controller, this CNC EDM machine ensures unmatched accuracy, ease of use, and operational safety. Designed to meet the evolving needs of industries such as mold manufacturing, aerospace, automotive, and electronics, it combines high performance, user-friendly controls, and robust durability.
Unlike conventional EDM machines, the CNC EDM (NEXT GEN V1.1) goes beyond basic discharge cutting by offering features like mirror discharge circuits, automatic discharge program generation, and advanced connectivity options including USB, Ethernet, and RS232. This makes it a future-ready solution for industries seeking speed, consistency, and precision in their machining processes.
Three Axis Windows-Based Controller for seamless operation and advanced control.
15” TFT-LCD Touch Screen providing clear visibility and intuitive interface.
Ultra-Precision Mirror Discharge Circuit for smooth finishes and superior accuracy.
Automatic Discharge Program Generation to reduce manual input and save time.
Multiple Connectivity Options – USB, Ethernet, and RS232 for easy data transfer.
Large Storage Capacity with 60-program storage.
Dual Command Modes – absolute and incremental for flexible operation.
Multi-Functional Hand Control Box ensuring precise manual control when needed.
Discharge Time Indicator for real-time monitoring of machining cycles.
Smoke Sensor & Fire Extinguisher integrated for added safety.
Lateral Auto Discharge system for smooth and uninterrupted operation.
| Items | Unit | A30 | A40 | A45 |
|---|---|---|---|---|
| Worktable size (L × W) | mm | 600×400 | 700×450 | 700×450 |
| Liquid groove internal size (L×W×H) | mm | 1020×600×400 | 1050×650×400 | 1050×650×400 |
| Liquid level adjustment range | mm | 110 | 110 | 110 |
| Max. capacity of the liquid groove | L | 152 | 152 | 152 |
| X, Y, Z axis travel | mm | 600×270 | 700×350 | 700×350 |
| Maximum electrode weight | kg | 35 | 50 | 50 |
| Maximum workpiece size | mm | 600×300 | 700×400 | 700×400 |
| The maximum and minimum distance surface to electrode plate | mm | 55 (Maximum), 5 (Minimum) | 55 (Maximum), 5 (Minimum) | 55 (Maximum), 5 (Minimum) |
| Positioning accuracy (JIS standard) | μm/mm | 5 μm/ (Arbitrarily 30mm) | 5 μm/ (Arbitrarily 30mm) | 5 μm/ (Arbitrarily 30mm) |
| Repeat accuracy (JIS standard) | μm/mm | 5 | 5 | 5 |
| Overall size (L×W×H) | mm | 2000×2100×2200 | 2100×2100×2300 | 2100×2100×2300 |
| Machine weight | kg | 1300 | 1600 | 1650 |
| Reservoir tank volume | L | 400 | 400 | 400 |
| Processing liquid filter type | Switching Cartridge Filter | Switching Cartridge Filter | Switching Cartridge Filter | |
| NC pulse power supply unit | A | A30 | A40 | A40 |
| Maximum current | A | 30 | 40 | 40 |
| Total input power | KVA | 9 | 9 | 9 |
| Input Supply | V | 3 Phase, AC415V/50Hz | 3 Phase, AC415V/50Hz | 3 Phase, AC415V/50Hz |
| Best surface roughness | Ra | 0.1μm | 0.1μm | 0.1μm |
| Electrode wear | 0.9% | 0.9% | 0.9% | |
| Max. productivity | mm/min | (Copper steel) 500mm/min / (Graphite steel) 1030mm/min | (Copper steel) 500mm/min / (Graphite steel) 1030mm/min | (Copper steel) 500mm/min / (Graphite steel) 1030mm/min |
| Standard process | Copper/steel, fine copper/steel, graphite/steel, copper tungsten/steel, steel/steel, copper tungsten/carbide, carbon/graphite, heat resistant alloys | Copper/steel, fine copper/steel, graphite/steel, copper tungsten/steel, steel/steel, copper tungsten/carbide, carbon/graphite, heat resistant alloys | Copper/steel, fine copper/steel, graphite/steel, copper tungsten/steel, steel/steel, copper tungsten/carbide, carbon/graphite, heat resistant alloys | |
| Interpolation type | Linear, circular, spiral | Linear, circular, spiral | Linear, circular, spiral | |
| Each axis compensation | Each axis respectively step error compensation, clearance compensation | Each axis respectively step error compensation, clearance compensation | Each axis respectively step error compensation, clearance compensation | |
| Maximum number of controlled axes | Three axes linkage (standard), four simultaneous axes (optional) | Three axes linkage (standard), four simultaneous axes (optional) | Three axes linkage (standard), four simultaneous axes (optional) | |
| Resolution of each axis | μm | 0.4 | 0.4 | 0.4 |
| Minimum drive unit | μm | 1 | 1 | 1 |
The CNC EDM (NEXT GEN V1.1) machine is versatile and serves multiple industries that require precision machining of complex and hard materials. Key applications include:
Mold & Die Manufacturing – Perfect for creating high-quality molds with intricate detailing.
Aerospace Engineering – Ensures accuracy in turbine blades, engine components, and complex aerospace parts.
Automotive Industry – Used for precision machining of gears, engine blocks, and die components.
Electronics Industry – Ideal for micro-component manufacturing requiring accuracy and consistency.
Medical Equipment Manufacturing – Useful for producing surgical tools and micro-sized parts.
Defense & Engineering Industries – Suitable for high-strength, high-accuracy component production.
By combining speed, safety, and flexibility, this machine is tailored for industries where quality and reliability are non-negotiable.
1. Advanced Technology
The CNC EDM (NEXT GEN V1.1) integrates the latest EDM technology with a user-friendly Windows interface and touch screen display. The automatic program generation and connectivity features provide ease of operation and reduce downtime.
2. Precision and Quality
With its ultra-precision mirror discharge circuit, the machine guarantees fine finishes and high repeatability – essential for industries where tolerances are tight.
3. Safety & Reliability
The built-in smoke sensor and automatic fire extinguisher ensure safe operations, even in demanding environments.
4. Industry-Proven Performance
Engineered with industrial requirements in mind, the CNC EDM (NEXT GEN V1.1) has been tested for continuous use across multiple sectors.
5. Trusted Manufacturer
J.K. Machines is an ISO 9001:2008 certified company with a proven track record in delivering durable, high-performance EDM and CNC solutions across India and abroad.
The CNC EDM (NEXT GEN V1.1) machine from J.K. Machines is more than just a piece of equipment – it is an advanced machining solution designed to improve productivity, accuracy, and safety in industrial applications. Whether you belong to mold manufacturing, aerospace, automotive, or electronics, this machine is engineered to meet the toughest challenges of modern production.
With state-of-the-art features like a Windows-based three-axis controller, automatic discharge program generation, and in-built safety systems, the CNC EDM (NEXT GEN V1.1) sets a new benchmark in the EDM industry.
If you are looking for a reliable CNC EDM machine supplier in India with the perfect balance of performance and affordability, J.K. Machines is your trusted partner.
