Salient Features

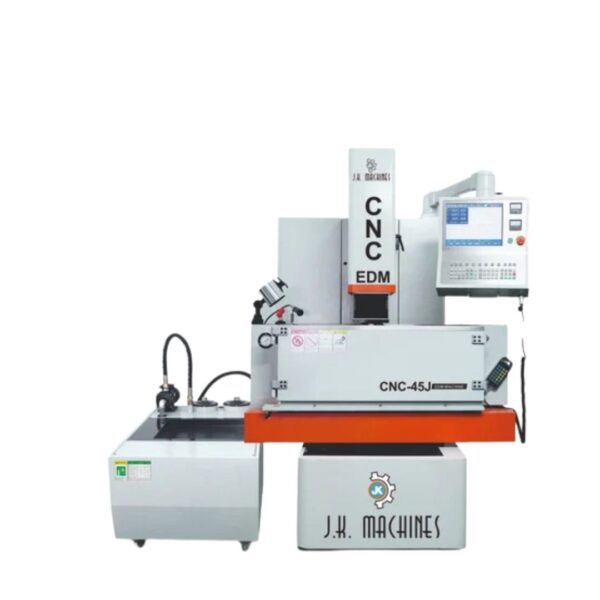

Electric Discharge Machining (EDM) has transformed the way industries approach precision drilling, cutting, and shaping of hard metals. Among various EDM technologies, the CNC EDM Machine (Integrated Type) stands out for its unmatched accuracy, intelligent control, and reliable performance. At JK Machines, we bring you next-generation CNC EDM machines engineered to deliver maximum productivity and precision across a wide range of industrial applications.
Our CNC EDM Machines are equipped with Panasonic AC servo motors, multi-functional hand control systems, smoke sensors, and automatic protection circuits to ensure safe, efficient, and smooth operations. Designed for tool rooms, aerospace, automotive, die and mould industries, and other advanced manufacturing units, our CNC EDM Machine offers a perfect blend of innovation, reliability, and durability.
When it comes to investing in precision machines, choosing the right manufacturer is crucial. JK Machines has been at the forefront of providing high-quality EDM solutions in India, ensuring that industries achieve superior productivity with minimal downtime. Here’s why our CNC EDM Machine (Integrated Type) is the ideal choice:
Proven Reliability – Built with international quality standards and top-tier components like Panasonic AC Servo motors.
User-Friendly Interface – Equipped with a 15-inch LCD screen and multifunctional hand control box for easy operation.
Safety First Design – Integrated smoke sensor, fire extinguisher, and automatic carbon protection circuit to ensure safe machining.
Precision Guaranteed – With axis resolution as fine as 1 micron, the machine achieves excellent accuracy.
Comprehensive Support – JK Machines provides installation, operator training, spare parts availability, and after-sales service.
Cost-Effective Solution – A machine that combines durability with low maintenance requirements, giving you long-term value.
Technical specifications
| Specification | Unit | CNC-30J | CNC-45J | CNC-50J | CNC-70J |
|---|---|---|---|---|---|
| Work Tank (WxDxH) | mm | 870 x 570 x 320 | 1050 x 610 x 450 | 1150 x 690 x 480 | 1940 x 1050 x 600 |
| Working Table | mm | 500 x 300 | 700 x 450 | 800 x 500 | 1200 x 700 |
| Longitudinal Travel (X axis) | mm | 300 | 450 | 500 | 700 |
| Transverse Travel (Y axis) | mm | 200 | 350 | 400 | 600 |
| Quill Travel (Z axis) | mm | 200 | 250 + 250 | 250 + 250 | 300 + 300 |
| Quill to Working Table | mm | 520 | 700 | 760 | 1000 |
| Max. Electrode Weight | kg | 50 | 75 | 75 | 100 |
| Max. Workpiece Weight | kg | 400 | 600 | 800 | 1800 |
| Drive System for X,Y,Z Axis | AC Servo | AC Servo | AC Servo | AC Servo | |
| Machine Weight | kg | 1350 | 1600 | 2200 | 3500 |
| Machine Dimension | mtr | 1.50 x 1.40 x 2.30 | 1.80 x 1.40 x 2.40 | 1.90 x 1.15 x 2.50 | 2.10 x 2.00 x 2.80 |
| Pulse Generator | |||||
| Max. Working Current | amp | 30 ( 60AMP & 90 AMP OPTIONAL) | |||
| Max. MRR | mm3/ min | 300 | |||
| Min. Electrode Wear | % | ≤0.1 | |||
| Best Surface Finish (Ra) | µ | 0.30 (0.10 with mirror finish circuit) | |||
| Power Supply | volt | 3 Phase, AC415V/50Hz | |||
| Connected Load | kVA | 4 | 6 | 8 | 10 |
| Dielectric tank | |||||
| Oil Tank Capacity | Ltr | 300 | 400 | 500 | 600 |
| Oil Pump Motor Power | HP | 0.50 | 0.75 | 0.75 | 0.75 |
Standard Accessories
Optional Accessories
Our CNC EDM Machine is designed with advanced features that make it a preferred choice for industries requiring extreme accuracy and reliability:
Panasonic AC Servo Control for X, Y & Z Axis: Ensures smooth motion and precise control for complex machining operations.
15-inch LCD Display: Offers a clear and interactive interface for operators to manage tasks effectively.
Automatic Carbon Deposition Protection: Prevents electrode wear and maintains consistent machining quality.
Multi-Functional Hand Control Box: Allows operators to manage the machine with flexibility and convenience.
Compact and Elegant Design: Saves space in workshops while maintaining a modern, professional look.
Axis Resolution of 1 Micron: Enables fine detailing and high-accuracy machining.
Safety Mechanisms: Smoke sensor and integrated fire extinguisher for enhanced safety.
Ultra-Deep Hole Capability: High lifting height ensures drilling and machining of ultra-deep holes with efficiency.
| Specification | Details |
|---|---|
| Axis Drive | Panasonic AC Servo (X, Y & Z Axis) |
| Display | 15-inch High Resolution LCD Screen |
| Protection System | Automatic carbon deposition prevention circuit |
| Control | Multi-functional hand control box |
| Machine Design | Compact & Elegant Integrated Type |
| Axis Resolution | 1 Micron |
| Safety | Smoke Sensor + Fire Extinguisher |
| Lifting Height | Suitable for Ultra-Deep Hole Machining |
This combination of advanced technical specifications ensures consistent performance even under challenging machining requirements.
The CNC EDM Machine (Integrated Type) is suitable for a wide range of industries:
Aerospace Industry: For machining high-strength alloys like titanium and Inconel.
Automotive Industry: For precision moulds, engine components, and transmission parts.
Electronics Industry: For small, delicate parts requiring ultra-precision.
Tool & Die Manufacturing: For producing moulds, punches, and dies with fine details.
Medical Equipment Manufacturing: For precision drilling and shaping of specialized surgical tools.
Defense & Engineering Workshops: For complex machining tasks where conventional processes fail.
What makes our CNC EDM Machine (Integrated Type) truly stand apart are its specialized features designed to improve performance and ensure reliability:
Automatic Safety Controls – Smoke detection and fire extinguishing system integrated into the machine for operator safety.
Carbon Deposition Prevention – Eliminates the biggest challenge in EDM machining by extending electrode life.
Ultra-Deep Hole Machining – High lifting height provides flexibility for machining deep and complex components.
High Accuracy – 1-micron axis resolution ensures superior precision for critical parts.
User-Centric Operation – Multifunctional hand control with simple interface reduces operator fatigue.
Compact Structure – Space-saving integrated design suitable for small and medium workshops.
Enhanced Productivity – Faster cutting and drilling with stable servo controls.
Electrical Discharge Machining is preferred worldwide because of its unique advantages over traditional machining:
Ability to machine extremely hard materials (steel, titanium, carbide alloys).
High precision for intricate shapes and delicate components.
No direct contact between tool and workpiece, reducing mechanical stress.
Capability to work on heat-treated and exotic alloys.
Produces superior surface finish without post-processing.
Reduces machining time for complex cavities and moulds.
Our CNC EDM Machine incorporates these advantages and further enhances them with automation, safety, and servo-driven accuracy.
The CNC EDM Machine (Integrated Type) by JK Machines is a state-of-the-art solution for industries demanding precision, reliability, and efficiency. With features like Panasonic AC Servo motors, automatic carbon protection circuits, ultra-deep hole capability, and advanced safety systems, this machine is designed to meet modern industrial challenges.
Whether you are in aerospace, automotive, medical, electronics, or tool & die manufacturing, our CNC EDM Machine will help you achieve unmatched productivity and accuracy. Backed by JK Machines’ expertise, customer support, and commitment to quality, this machine ensures long-term value and competitive advantage for your business.
